Zero covariation returns

Asset returns are modeled by locally bilateral gamma processes with zero covariations. Covariances are then observed to be consequences of randomness in variations. Support vector machine regressions on prices are employed to model the implied randomness. The contributions of support vector machine regressions are evaluated using reductions in the economic cost of exposure to prediction residuals. Both local and global mean reversion and momentum are represented by drift dependence on price levels. Optimal portfolios maximize conservative portfolio values calculated as distorted expectations of portfolio returns observed on simulated path spaces. They are also shown to outperform classical alternatives.

A number of recent papers have proposed the view that price processes in active financial markets are pure jump processes with an infinite aggregate jump arrival rate. By way of examples, we cite Madan (2017a), Madan and Schoutens (2017), Madan and Wang (2017), Madan, Schoutens, and Wang (2017). The jumps synthesize unanticipated shocks occurring at surprise times modeled by Poisson arrival times. Given the large number of shocks involved, a limit law like the Gaussian law is employed to describe return distributions. As a consequence, the arrival rate of jumps aggregated across all jumps, must be infinite. This hypothesis is maintained here in the context of studying dependencies in price processes. An approach to studying dependence in the context of jump arrival rate specifications using multivariate arrival rates with full support in higher dimensions is presented in Madan (2017b) building on the developments in Buchmann, Madan, and Lu (2016). Alternative approaches include the use of copulas, Kallsen and Tankov (2006), or multivariate time changes, Luciano and Semeraro (2010), or factor structures, Marfè (2011). By contrast, the hypothesis entertained here is that of zero covariation. It may be reasonable to postulate that even when two markets respond to the same underlying disturbances, they do so at their own timing. As a consequence, a simultaneous jump in both markets, at essentially the same point of time in continuous time, may be too extreme a hypothesis. It is therefore supposed here that price processes have zero covariations with no simultaneous jumps. The paper goes on to develop the consequences of zero covariation for dependence modeling and portfolio theory. The zero covariation hypothesis is consistent with the view expressed in Epps (1979) and further documented in Bonanno, Lillo and Mantegna (2001), that covariance requires time and declines with the horizon.

For zero covariation processes, the first question addressed is how nonzero covariances arise at a particular horizon. It is noted that this is possible only if the integrated instantaneous variations are themselves stochastic. In fact, the covariance at the horizon is the covariance of the instantaneous variations integrated over time. A Markovian formulation then models instantaneous variations as functions of the price processes themselves. For the pairwise case reported on in some detail, the instantaneous variations are taken to depend on the two prices separately or just their ratio. The result is a pure jump Markov process of the type studied in Bass (1988). For applications to option pricing we cite Elliott and Osakwe (2006)

The modeling exercise has to choose a functional form for the dependence of variations on prices and one could begin with a linear representation. However, we anticipate that there may be no dependence for prices in a certain range with corrective actions inducing alterations in variations when price levels are in extraordinary or extreme states. The anticipated relation is then nonlinear and a priori, the functional forms involved are not known. For example, positive drifts may arise when prices rise substantially and negative ones when they fall significantly, to reflect momentum, or the other way around for mean reversion. Further, there may be a local mean reversion range coupled with momentum if prices go even further out. As one is in fact modeling the dependence of parameters of jump arrival rate functions on prices, the use of unbounded functions like polynomials is inappropriate and even problematic from the perspective of the existence of processes with the specified jump compensators or arrival rate functions. In this regard we note the conditions developed in Bass (1988). For the existence of processes, the use of bounded nonlinear functions is appropriate.

Such considerations suggest the possible use of support vector machine regressions (rsvm). The kernel based approximations developed in Fasshauer and McCourt (2015) allow for a linear representation in terms of a large number of nonlinear functions extracted from a kernel operator that are generally bounded. With a view towards validating the procedure, the proposed methods are first tested on simulated data where the true nonlinear dependence is known apriori and the rsvm procedures are applied to recover the known dependence.

On real market data, local estimates of instantaneous variations are first constructed using recent daily time series data. The rsvm procedures are then employed to relate these to the time series data on the corresponding prices or their ratios. The specific rsvm method used employs a regularized form of epsilon insensitive optimization.

The typical support vector machine regression creates a linear combination of hundreds of selected nonlinear transforms to build a prediction function. The output of a support vector machine regression is a computer program that may be saved and used for predictions. Given a set of predictors using possibly different prediction architectures there is then a need to evaluate and compare prediction qualities. This could be done on the basis of a variety of fit statistics. In judging statistical significance, fit statistics are often penalized on the basis of the number of estimated coefficients. One may note in this regard the Akaike information criteria (Akaike (1973)) in selecting the order in a time series analysis. However, in an rsvm application it is not clear how these are to be counted and given the large number of nonlinear transforms involved the penalty may get quite large. Furthermore, fit statistics do not provide an assessment of improvements from an economic viewpoint.

For an economic perspective, we turn to developments in two price economies (Madan and Schoutens (2016)) that evaluate the necessary costs of holding risk exposures. Basically, the cost of an exposure is the spread cost of entering and exiting the exposure when trading in both directions at adverse terms. The two price economy provides constructions of lower and upper conservative valuations at which positions may be offloaded or acquired. We take as an economic cost the spread between these upper and lower valuations. For the purpose of valuing predictions, one evaluates the economic cost of the prediction residual seen as a risk exposure. In evaluating different predictors, attention is focused on the percentage reductions in exposure costs delivered by various models. The percentage cost reduction is an easily interpretable performance metric.

In estimating daily variations on underlying assets, we follow Madan, Schoutens, and Wang (2017) and the methods of Madan (2017c). The variations are integrals of jump sizes taken with respect to the arrival rates for the different jump sizes. They require an estimation of arrival rate function parameters from data on daily returns using return probability estimates derived from the specification of such arrival rate functions. Relying on the presence of a large number of jumps per unit time in active financial markets, unit time distributions are modeled by limit laws, comparable to the Gaussian law. Pure jump limit laws have the property that their jump arrival rates, when scaled by the absolute jump size, are decreasing functions of the absolute jump size (Sato (1999)). This makes the aggregate arrival rate of pure jump limit laws, infinite. In particular compound Poisson processes are not limit laws. Recent research reported in Madan and Wang (2017) and Madan, Schoutens, and Wang (2017) suggests the need at a minimum of a four parameter model allowing for speed and scale, equivalently mean and variance of up and down moves to differ with the direction. The bilateral gamma process of Küchler and Tappe (2008) written as the difference of two independent gamma processes provides such an example, and it is employed here. It is a generalization of the variance gamma model of Madan and Seneta (1990), and Madan, Carr, and Chang (1998) that results in equating the speed or variance rate parameters for the up and down moves.

The nonlinear projections are first conducted using rsvm in one and two dimensions. Results are presented for a variety of equity assets, commodities, interest rates, equity indices, and their volatility indices. Examples are provided for when in a pair of assets one or both may mean revert to the other. There are also examples of local mean reversion coupled with one or both developing momentum with respect to the other once the prices have already deviated sufficiently. One may also have momentum occurring locally.

Models of multivariate dependence across many assets are then constructed by forming support vector machine regressions of all four bilateral gamma parameters of motion on all the prices. Path spaces with the estimated model are then generated by simulation for the investment horizon. Optimal portfolios are constructed for the simulated joint returns. The portfolio constructions follow the methods of conic portfolio theory (Madan (2016)) and maximize a conservative lower portfolio valuation. Equivalently, they maximize reward less risk, where the reward is the mean and the risk is the upper valuation for the negated centered variate. This upper valuation is the cost of eliminating risk by accessing the negated centered variate at adverse market terms. The trade-off between reward and risk is one to one as both are in the same units of dollars. Comparative tests of zero covariation dependent conic portfolios with Markowitz mean variance portfolios are presented. It is observed that zero covariation dependent conic portfolios offer a significantly improved investment performance on a variety of metrics.

The steps to be taken in the paper may then be summarized as follows. First, it is established that zero covariation pure jump return processes develop covariance at a positive time horizon only if the arrival rates of jumps vary stochastically over time. When arrival rates are parametrically characterized, the parameters must then be stochastically varying. To ensure the existence of such processes the parameters are taken to vary in a compact set. Consequently, their dependence on observed stochastic processes must be given by bounded nonlinear functions. Support vector machine regressions deliver a robust, bounded, nonlinearity. The result is however complex and is delivered as a computer program as opposed to being expressed as an analytical functional form.

A stylized model is first developed to test the ability of support vector machines to capture the true nonlinearity when it is known. This stylized model is then dropped further in the paper. Support vector machine regressions are then applied to validate their ability to capture zero covariation dependence in data for bond returns. The anticipated mean reversion is observed in this context. The methods are extended next to equity and other asset prices.

The next step is an exploration of the ability of support vector machine regressions to explain the behavior of asset drifts as functions of asset prices. For this purpose parameters of asset price processes are first estimated daily from a year’s worth of immediately prior return data. The bilateral gamma model is selected for this purpose based on prior studies. The estimation procedure for the model are described in detail. From such estimates one estimates daily the exponential variations or asset price drifts. Support vector machine regressions are then employed to explain the movements in the drifts.

With a view to evaluating the work being done by the computer programs delivered by support vector machine regressions we formulate a measure of the cost of holding prediction residuals. The percentage reductions in economic cost serve as a measure of support vector machine contributions. We then present the results on asset drift prediction and the economic cost reductions achieved by support vector machine regressions.For portfolio construction one needs to explain more than just the asset drifts. The complete dependence of arrival rates must be synthesized. Hence we apply support vector machine regressions on all the four bilateral gamma parameters on all prices in the portfolio to build zero covariation dependence structures. Economic cost reductions achieved on all parameters are presented. The dependence modeling is then complete and permits portfolio construction. Optimal portfolios are formed to maximize conservative portfolio values calculated as distorted expectations of portfolio returns. Results are shown for two and multi-asset portfolios with monthly rebalancing and woth comparisons to optimal mean variance portfolios.

The outline of the rest of the paper is as follows. Section 2 presents results on the implications of zero covariation. Section 3 takes up the use of support vector machine regressions and validates these procedures on a stylized model and its simulated data. The section also presents an analysis of using support vector machine regressions to model the anticipated dependence present in interest rate data. Section 4 details the construction of daily variations related to estimating the parameters of motion for asset prices. Section 5 introduces the economic cost of exposure to prediction residuals as an economic measure of model performance. Section 6 presents bivariate examples of dependence with zero covariation. Section 7 takes up portfolio theory in a two-asset context. The multi asset portfolio construction is presented in Section 8 and includes a comparison with Markowitz investment of regularly rebalanced portfolios. Also presented are monthly rebalanced portfolios over a nine year period for sets of ten randomly selected stocks. Section 9 concludes.

Consider two price processes S₁=(S₁(t),t≥0) and S₂=(S₂(t),t≥0) that are pure jump processes and exponentials of X₁=(X₁(t),t≥0) and X₂=(X₂(t),t≥0). The joint arrival rate function for the pair (X₁,X₂) in the absence of covariation takes the special form

where the dependence on ω is adapted.

Further, the relationship between price changes and log price processes is as follows:

when the sums on the right side are well defined as is the case for finite variation log price processes. The joint characteristic function at horizon h is given by

From the absence of covariation it follows that

The covariance of returns for horizon h is then given by

Evaluating the required derivatives yields the results

are the stochastic instantaneous variations.

Furthermore,

The covariance is thus given by

Define the integrated instantaneous variations by

We have to evaluate the integrated instantaneous variations of the two variables and then evaluate their covariance. If the integrated instantaneous variations are constant as they would be when the jump arrival rates are deterministic functions of the jump size with no dependence on ω, then this covariance will be zero. The same is true if the jump arrival rates are deterministic functions of the jump size and time. Furthermore, if the two jump arrival rate functions depend deterministically on two independent random variables the covariance will once again be zero. For covariance to occur at some horizon, the two jump arrival functions must be adapted to the same or otherwise correlated variates. These considerations lead us to consider models for the arrival rates as nonlinear functions of the two price levels or their ratios. We note here that there is an extensive literature studying the relationship between covariation and covariance for semimartingales with continuous sample paths and we cite in thus regard Barndorff-Nielsen and Shephard (2004). The interest here is restricted to pure jump processes for reasons presented later in the paper.

We are essentially modeling the dependence of the parameters of arrival rate functions on variables of interest. It is anticipated that these parameters may move around but belong to a compact set. Of necessity then the dependence of such parameters on selected variables of interest must then be nonlinear. Given data sets x _i at which points y _i are to be predicted, the use of linear regression postulates an underlying relationship of the form

where the coefficients α,β are estimated by linear regression. One may also introduce nonlinearities using squares and cross products but the postulated function form will not have a compact range.

Gaussian process regression and support vector machine regressions employ kernel functions K(x,x^′) that map the Hilbert space of square integrable functions with respect to a base measure to itself and define candidate functions of the form

The coefficients α _i are estimated to optimize a variety of prediction performance metrics. The structure of kernel functions ensures that the range is compact. A variety of kernels are available with the most popular being the Gaussian kernel. Parameters of the kernel also enter the optimization. Here we employ Gaussian kernels.

Covariances can arise at longer horizons with dependencies that occur over time, if, for example, arrival rates of price motion depend on the price levels themselves. In this case one may have, for example, that

A further special case models forces at work that try to keep the ratio within bounds by directly creating just a dependence on the ratio of the prices. In this case,

By way of a specific example to be simulated, take k₁,k₂ in the bilateral gamma class with parameters depending on the ratio of the levels.

Let X₁(0)=X₂(0)=0. Further,i suppose that for | log(S₁/S₂)|<α the arrival rates are not dependent on the ratio. For price relatives within a bound the two processes, conditional on the maintenance of the bound, are just independent bilateral gamma processes. Dependencies may occur when price relatives violate the bound. The next subsection models the creation of dependence via an exponential tilting of the arrival rate functions.

Creating dependence by exponential tilting

The base Lévy measure or arrival rate function is that of a bilateral gamma process introduced, for example, in Madan, Schoutens, and Wang (2017) with

There will be some constant base drift in the stock over time given the base arrival rate function. With a view to creating dependence, consider changing this drift by exponential tilting that alters the relative rates of positive and negative jumps. The use of such a procedure in well established for premium calculations in Insurance and in the construction of risk neutral distributions for option pricing. We cite in this regard Naik and Lee (1990), Gerber and Shiu (1994), Carr and Wu (2004) and Elliott, Chan and Shiu (2005) among others. Here we employ the procedure to introduce dependence.

On applying an exponential tilt, the arrival rate function shifts to

One then has another bilateral gamma process with parameters

or that

For positivity of parameters it is necessary that either

or \(0<-\theta <\frac {1}{b_{n}}\).

Therefore, for θ>0 let

and for θ<0 let

For | log(S₁/S₂)|<α we suppose no tilt and θ=0. Mean reversion is organized by taking θ<0 for S₁/S₂> exp(α) and θ>0 for S₁/S₂< exp(−α). More specifically, for S₁>S₂ let

while for S₁<S₂ let

Mean reverting drifts are introduced when the ratio departs from initial levels severely in either direction. Otherwise we have independence. The result is a fourteen parameter model with dependence and parameters

where the primed parameters are for k₂, the Lévy measure for the second stock while the nonprimed parameters are for k₁, the Lévy measure for the first stock. In the primed case, we have for S₂>S₁

and for S₂<S₁,

When we tilt the Lévy measure to

the effect on the drift is as follows. The original drift is

and it goes to

which is

Simulated data

We simulated 10,000 paths of 252 days for two stock prices with bilateral gamma parameters as those for INTC and IBM on 20170131

and the stocks starting at 100 and the value of α=0.05, and the parameters \(a_{p},a_{n},a_{p}^{\prime },a_{n}^{\prime }\) all set equal to 2. Figure 1 presents the conditional drifts for the change in the two stock prices as a function of the ratio of each stock price to the other price.

Presented are the true conditional drifts in the two stock prices, S₁ and S₂ in basis points as a function of the ratio of own price to other price. The graphs present the consequence of modeling the dependence of local parameters of motion on prices

Full size image

Observe that for levels below alpha for the log price ratio in absolute value, the process is a pair of independent bilateral gamma processes. When the ratio leaves this region we have mean reversion with a negative drift for a high own price and a positive drift for a low own price.

Figure 2 presents graphs of the two contemporaneous returns and the associated stock prices. We may observe the expected absence of covariance. However, there is dependence as seen by a plot of the two stock prices against each other across a subsample of days and paths presented.

The upper panel presents a graph of the two simulated contemporaneous returns reflecting mean reversion dependence in the tails with a central motion that is one of independent increments by construction. The lower panel presents a graph of the second simulated stock price as a function of the first simulated stock prices. We observe the tendency of the two prices to maintain a stable ratio between themselves

Full size image

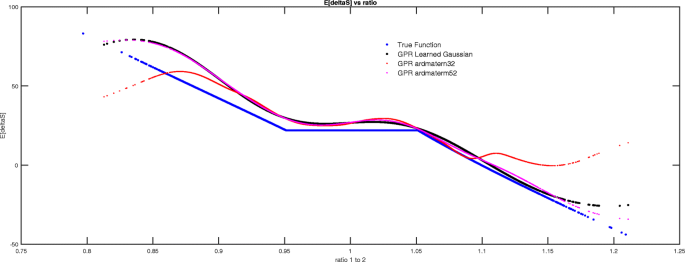

We now train a Gaussian process regression to learn the dependence of the change in the first stock price as a function of the ratio of the two prices, own to other on a subsample of days and paths. Figure 3 presents the result.

The true dependence is presented by the piecewise linear curve. The predicted dependence estimated by a Gaussian process regression is given by the curved line

Full size image

We see that a Gaussian process regression is capable of learning the existing dependence.

A two-dimensional analysis of pure discount bond data

We anticipate that bond prices of different maturities must be dependent but may also have no covariation if they are pure jump processes moving at their own times that are not synchronized across the maturity spectrum. The dependence comes from a possible dependence of drift via the dependence of parameters of motion on the prices themselves.

To investigate this further, daily time series of pure discount bonds were constructed from data on yields to maturity each day for a variety of maturities. The data comes at specific maturities that vary each day. By interpolation, pure discount bond prices were derived for the fixed maturities of 1, 3, 6, 9, and 12 months and 2, 5, 10, 15, and 20 years. The data set went from January 3, 2007, to August 29, 2017, for 2782 days. Beginning on December 19, 2007, and employing on a rolling basis of 252 days of past returns on each of the 10 time series, bilateral gamma parameters of motion were estimated for the logarithm of the pure discount bond prices (see the next section for further estimation details). One obtains as a result, 2530 sets of bilateral gamma parameters for each of the ten pure discount bonds.

For an analysis of dependence, consider first just the dependence between the pure discount bond price for maturities of one and five years. From the bilateral gamma parameters we inferred for each day the expected exponential variation in the price as

For the analysis of the possible nonlinear dependence of drifts on the two continuously compounded rates for the one and five year maturities we estimated a support vector machine regression using a Gaussian kernel. Figure 4 and present the estimated drift response surfaces.

Exponential variations of one and five year bond prices as a function of the one and five year spot rates in the upper and lower panels respectively. Positive drifts at high rates and vice versa for low rates reflect mean reversion in the bond prices

Full size image

There is a sufficient nonlinearity in the drift response that creates potential dependence in the absence of any covariation as the processes remain independent bilateral gamma processes unless rates move to extreme regions. We observe that when rates are high the price drifts are positive indicating a drop in rates with the opposite occurring when rates are low.

The estimation of exponential variations daily is based on estimating the parameters of an uncentered distribution of returns that may be estimated from say 252 days of data on immediately prior continuously compounded returns. Critical to such an exercise is the choice of the parametric class of distributions. Clearly the class must be capable of fitting the data but hopefully not be so wide as to permit over fitting. The imposition of structural restrictions helps to reduce parameters and simultaneously avoid over fitting. On the other hand some parametric richness helps in differentiating possibilities away from imposing too many symmetries. In this regard we rely on experience in fitting return distributions both risk neutrally and in the time series data.

The theoretical structural restriction is to appeal to a limit law for the distribution. This is on the grounds that the number of price moves involved in the unit time of a day, though finite, is quite large. The limit laws arise at infinitely many moves and have been characterized as the self decomposable laws by Lévy (1937) and Khintchine (1938). They are a subclass of the infinitely divisible distributions with a further restriction on the associated Lévy density. Arrival rates of jumps when scaled by the absolute jump size must be decreasing functions of the absolute jump size (Sato (1999)). The self decomposable laws also have provably unimodal distributions and thereby refrain from overfitting a multiple of modes.

There are asymmetries between the way market prices rise and how they fall. It is often said that markets take the escalator up and the elevator down. Recently these differences were explored and documented in Madan and Wang (2017), and Madan, Schoutens and Wang (2017). Further, appealing to price moves being surprises occurring at surprise times modeled by Poisson arrival times for fixed jump sizes, we employ a pure jump price process. Thus we refrain from employing a continuous component either deterministic or random in the price process or its logarithm. The random continuous processes impose a symmetry between the upward and downward motion and do not permit a split between the two. They are also processes of infinite variation that do not permit the two processes of upward and downward motion to be separated. Already the use of limit laws stretches reality by allowing for infinitely many moves. Infinite variation is yet another stretch away from reality.

A particularly simple pure jump process with a self decomposable law at unit time is given by the variance gamma model of Madan and Seneta (1990) and Madan, Carr and Chang (1998). The jump arrival rate function when scaled by the absolute jump size is just a negative exponential of the absolute jump size, a clearly decreasing positive function. It permits a separation of the upward and downward motion, with both processes being gamma processes with separate scale parameters and the same shape or speed parameters. Madan and Wang (2017), Madan, Schoutens and Wang (2017) document that identical speeds on the two sides may be overly restrictive and they employ the bilateral gamma process of Küchler and Tappe (2008). This is a difference of two gamma processes with their own speed and scale parameters. It is observed that the upward motion has a higher speed and lower scale parameter when compared to the same for the downward motion. Other asymmetric constructions of price motion could also be employed by entertaining the differences of other subordinators.

The estimation is conducted to match by weighted least squares the bilateral gamma model tail probabilities to their observed counterparts. The data on daily returns is sorted in increasing order and points k _i are extracted by interpolation of the empirical distribution function such that the probability of returns being less than k _i is i/100 for i=1,⋯,99. The observed tail probabilities are

For the model probabilities with scale and speed parameters b _p ,c _p and b _n ,c _n for the positive and negative moves, respectively, we employ the bilateral gamma characteristic function

The bilateral gamma process is given in terms of two independent standard gamma processes γ _p ,γ _n by

The density may be obtained by Fourier inversion of the characteristic function. Starting values are derived from an estimation of the variance gamma process that is a special case of the bilateral gamma with c _p =c _n =C. The variance gamma arrival rate function (Madan and Seneta (1990), Carr, Geman, Madan, and Yor (2002)) has the form

and b _p =1/M, b _n =1/G. The closed form for the variance gamma density (Carr and Madan (2014)) is

where K _ν (x) is the modified Bessel function and C,G,M are the variance gamma parameters associated with its arrival rate function (1). The variance gamma density is used to estimate variance gamma tail probabilities to first fit the variance gamma model to observed tail probabilities to get starting points for the bilateral gamma estimation. In both cases, with \(\widehat {y}_{i}\) being the model tail probability the weighted least squares optimization criterion employs the Andersen and Darling (1952) weights to minimize

Once the parameters have been estimated the exponential variation for the day in basis points is given by

For all the underlying assets, time series of exponential variations η _mt are constructed for asset m on day t. Also employed are the time series of prices p_m,t for the price of asset m on day t. The collection of variations and price histories are the inputs for support vector machine nonlinear regressions designed to learn how the variations depend on the prices.

The nonlinear models constructed by support vector machines form linear combinations of a large number of nonlinear transforms of the original data. The particular nonlinear transforms employed are selected by the optimization algorithm out of a much larger base set of transforms. The parameter estimation algorithms employ regularization tradeoffs and numerous fit statistics for determining the selected predictor. We then seek a uniform basis for comparing and contrasting the various predictors. One could use least squares, weighted least squares, or other weighted norms with related issues on specifying the weights to be employed. The possibilities are many and the principles to be used in formulating the final criterion quite unclear. In any case, the variety of goodness-of-fit criteria or distance metrics available generally pay little attention to economic matters and are directed towards statistical considerations like the ability to derive distributional properties in some stylized ideal environments. These statistical results enable one to assert that the observed improvement would have been unlikely to occur by chance and so it should be viewed as a significant improvement. Instead of judging improvements on such a statistical basis we ask if the improvement represents an economic advancement.

For the development of an economic assessment for a predictor we seek an answer in terms of the economic cost of the error or the residual. Consider then the perspective for predicting a target y with a prediction \(\widehat { y}\) delivered by some model. Suppose the target is a cash flow that we have to pay out. Further suppose we may arrange to receive the prediction \( \widehat {y}\). In the absence of a prediction we make no such arrangement and then \(\widehat {y}=0\). The random net position is then \(y-\widehat {y}\) and we recognize that it is unlikely to be zero.

Now, under the traditional law of one price, all risky positions are worth what one could buy or sell them for as one can always trade in both directions at the same price. If you buy something for a price it is worth that price and you receive a value equal to what you paid for it. Similarly, if you sell something for a price the value delivered equals the price. There are no costs associated with risky positions. However, economic analysis may be conducted on replacing the fiction of the law of one price by that of a two price economy where it is recognized that prices for trading with the market depend on the direction of trade and you have to buy at higher prices than what you can sell for. You do not receive an equal value and the cost of a risky position may be modeled by the spread between the upper and lower valuations. The economic cost of prediction errors may then be taken to be this spread. Importantly, it is useful to note that economic costs are invariant to perturbation by constants as they affect both the upper and lower valuations equally.

The economic theory of two price economies as developed in Madan (2012, 2015), Cherny and Madan (2010), or Madan and Schoutens (2016) demonstrates in the first instance that this spread is the difference between the supremum and infimum of a number of valuations conducted using a set of test probabilities or scenarios. Associated with the set of test probabilities is a set of acceptable risks that are precisely those with a nonnegative valuation under all test probabilities. Under two further assumptions, one reducing acceptability to the distribution functions for the risk, and the other, requiring the additivity of lower and upper valuations across risks with no negative comovements, termed comonotone additivity, the lower and upper valuations may be represented by distorted expectations. First the distribution function is composed with a concave/convex distribution function on the unit interval and then expectations are taken for the lower/upper valuation. The composition serves as a distortion of probabilities lifting lower tail probabilities for the lower valuation and lowering lower tail probabilities for the upper valuation. The resulting expectations may also be seen as Choquet (1953) expectations with respect to nonadditive probabilities. Here, we evaluate the economic cost of prediction errors using such distorted expectations.

The concave distortion used for the lower valuation, termed minmaxvar, was introduced in Cherny and Madan (2009) and is given by the parametric form

Other well known distortions from the insurance literature include the Wang (2000) transform. The greater the value of γ, the more concave the distortion with no distortion occurring at γ=0. The set of test probabilities approving risk acceptability are all alternative probabilities Q satisfying

where P is the original or true physical probability (Madan, Pistorius, and Stadje (2017)). The upper valuation may be obtained using the complementary distortion

The value of distortion parameter γ employed in our calculations of economic cost is 0.75 as hedge fund returns are just acceptable at such a level as reported in Eberlein and Madan (2009). Hence, such a distortion is sufficiently conservative.

By way of an example, we note that the percentage reductions in economic cost delivered by least squares and support vector machine regressions in explaining the exponential variations for the prices of one-year pure discount bonds, using as explanatory variables the one and five-year rates, are 6.12 and 15.88%, respectively. The corresponding values for the five-year pure discount bonds are 7.12 and 38.39%. Though the absolute levels of economic cost vary and rise with the chosen stress level γ, the percentage reductions rendered by models are comparable across a wide range of such levels.

This section presents results on rsvm regressions of exponential variations of assets on the ratio of its price to that of a benchmark asset. Also presented are results of rsvm regressions of exponential variations on the own price and the benchmark price taken separately. Let us first consider sector ETF’s relative to the S&P 500 index and the index response to the sector ETF. Table 1 report the percentage reductions in economic exposure costs attained by linear and rsvm regressions of exponential variations of the ETF’s and the SPX, respectively, on the ratio and the two prices separately. We see considerable cost savings related to using the prices separately as opposed to the ratio though results for the latter may be more easily graphed.

For graphs of the rsvm predicted exponential variation as a function of the own to benchmark price ratio there are two graphs for each of the nine sector ETF’s. One for the sector ETF’s exponential variation and one for that of the S&P 500 index. These are presented in Fig. 5 for a sample of asset pairs. Unlike linear regressions where the relationship between two entities is symmetric by construction, nonlinear dependencies estimated by support vector machines can be asymmetric with the first responding to the second in a certain way while second responds to the first in different way or not at all.

For a selection of asset pairs the graphs present a support vector machine prediction of exponential variations in a chosen asset as a function of its price relative to the selected other benchmark price. Inverse relation reflect mean reversion in both directions while positive relations reflect momentum in both directions. The nonlinearity allows for a variety of possibilities

Full size image

When an increase in an asset price relative to a benchmark price is associated with an increase in the asset price’s drift then we have momentum upwards. Otherwise we have mean reversion upwards. Similarly a drop relative to a benchmark being related to a fall in the asset’s own drift reflects downward momentum and downward mean reversion otherwise. We observe that xlb mean reverts to the index but the index has momentum on both sides relative to xlb. xli is in a momentum state with respect to the spx on both sides while the latter mean reverts to these. spx mean reverts to xly while the latter is flat with respect to spx.

Other interesting bivariate examples also presented in Fig. 5 are JPM relative to XLF, gold relative to bitcoin, and the SPX relative to the VIX. We observe that JPM has momentum relative to XLF on both sides while XLF mean reverts to JPM. Bitcoin reverts to gold while the latter is flat with respect to the former. Finally, both the SPX and the VIX are in a state of momentum with respect to the other on both sides.

Given that exponential variations appear to vary in some interesting and rational ways with the price levels suggests that the bilateral gamma parameters must themselves be nonlinear functions of the prices. As all four parameters are required to be positive, we consider regressing their logarithms on the prices and, in fact, use the log prices. Anticipating nonlinearities, we apply support vector machine regressions for each of the four parameters to build their dependence on the vector of prices. In this section, we first consider just the case of two assets and take, for example, JPM and XLF. Synthesizing the parametric dependence then requires eight support vector machine regressions. For the two assets JPM and XLF, we performed an rsvm of the logarithms of the four parameters on the two prices. The economic cost reductions on the four parameters of scale and speed up and down on jpm were 45.35, 2.73, 33.53, and 2.17 percent, respectively. The corresponding values for xlf are 41.40, 14.25, 28.18, and 16.74 percent. We next take as starting values initial prices in the middle of the data range at 39.06 and 12.00 for JPM and XLF, respectively, to simulate a thousand paths of length 252 days for the two price processes with bilateral gamma returns reflecting the rsvm estimated dependence of both speed and scale parameters on the current level of the two prices. Figure 6 presents a graph of the thousand pairs of continuously compounded returns to year end.

Simulated returns on JPM and XLF over a year from model allowing all four parameters of a local bilateral gamma evolution to depend on both prices using support vector machine regression parameter predictions that are then input into a bilateral gamma simulator

Full size image

For the portfolio construction we vary the proportion invested in JPM from one to 99 percent at intervals of one percent to construct the matrix of size 99 by 1000 that represents the return on the 99 portfolios. The portfolios are valued at their lower or bid price using minmaxvar at a stress level of 0.75. Figure 7 graphs the value of the portfolio as a function of the proportion invested in JPM. The maximum occurs at 55% in this example. The principles of zero covariation return simulation and portfolio selection are generalized to multiple assets in the next section.

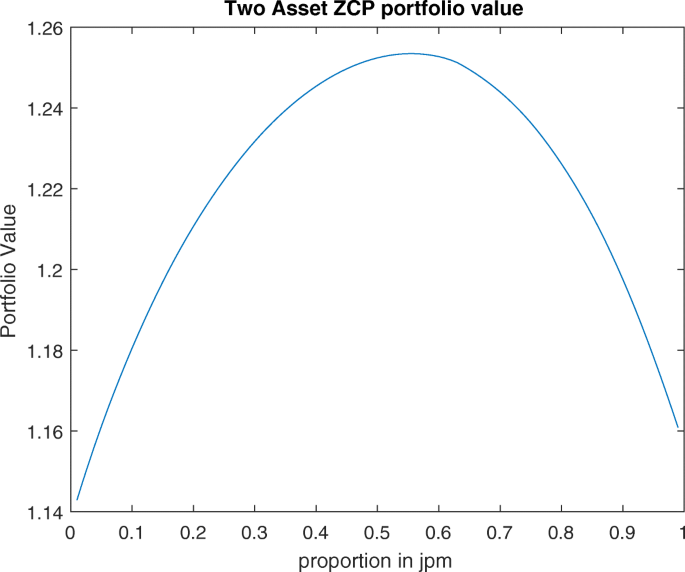

The graph show the zero covariation portfolio value computed as a distorted expectation of portfolio returns when local parameters of bilateral gamma motion depend nonlinearly on the two prices. The nonlinear dependence is estimated using support vector machine regressions. The value is presented as a function of the Proportion invested in the stock JPM

Full size image

By way of an illustration, we consider the construction of a portfolio invested in the nine sector exchange traded funds and the S&P 500 index. First, we construct the time series of bilateral gamma parameters for all ten assets. This was done for each day from January 3, 2008, to February 16, 2017, for a total of 2298 days using for each day the immediately prior 252 daily returns. We then perform 40 support vector machine regressions for each of the four parameters for each of the ten assets onto the data on the current prices for all ten assets. Table 2 presents the resulting sample percentage reductions in economic residual exposure cost delivered by the support vector machine regressions. The reductions are over 70% for the set of scale parameters and generally well over 20% for the speed parameters.

We next simulate a thousand price paths of length 252 days, for the ten assets, starting at an intermediate value, with bilateral gamma returns reflecting the computed dependence of parameters on the vector of ten current asset prices. The support vector machine returns 40 computer programs that may be used to evaluate this dependence, with each program evaluating a linear transform of possibly hundreds of nonlinear transforms. The ten starting prices were 38.5, 77.7, 14.3, 41.0, 29.6, 38.1, 37.4, 43.5, 50.7, and 1514.7. From these path spaces we evaluate the 10 by 1000 matrix R of continuously compounded returns to year end for the ten assets.

The portfolio is selected to maximize a conservative lower price for the portfolio value with cash flow to portfolio weights x given by

The portfolio objective is a conservative portfolio value calculated as a distorted expectation of the portfolio cash flows using minmaxvar at stress level 0.75. We solve for two portfolios, the first being long only while the second allows short positions constrained to be above negative 2.5%. In each case the portfolio weights are constrained to sum to unity. The two sets of portfolio weights are presented in Table 3.

The long only portfolio invests in XLB, XLP, XLY, and SPX. The short constrained portfolio increases the investment in the aforementioned assets and shorts the following at the maximum level: XLE, XLF, XLI, XLK, XLU, and XLV. Such a portfolio selection could be run regularly, say once a month and the portfolio rebalanced to the new weights that are adapted to a current analysis of zero covariation dependence across the ten assets.

Rebalancing zero covariation dependence portfolios

We report here on applying conservative portfolio value maximization for portfolio selection with rebalancing every 21 days. The objective maximized is the distorted expectation of portfolio cash flows three months out after they are simulated by locally bilateral gamma processes reflecting parameter dependence on price levels. The dependence is calibrated by support vector machine regressions using the immediately prior 252 daily parameter values for dependent variables and the vector of contemporaneous prices as the independent variables. The number of shares held are constant between rebalancing dates. Figure 8 presents the daily mark-to-market value of the rebalancing portfolio strategy along with the prices of the component assets.

Mark to market value of conservative portfolio value maximizing portfolio with zero covariation dependence modeling using support vector machine regressions of bilateral gamma process parameters. The portfolios were rebalanced every 21 days. The dependence modeling used prior 252 day support vector machine regressions of local parameters of bilateral gamma motion on all asset prices in the portfolio. Also shown are the price paths of the components

Full size image

Figure 9 presents the mark-to-market value using different stress levels for portfolio selection for a long only strategy and a strategy constraining the short side to 2.5%.

Mark to market values for long only strategy in the upper panel and long short with a short side constraint of 2.5% in the lower panel. The different curves represent different stress level used for the calculation of conservative portfolio vale as a distorted expectations of portfolio returns

Full size image

Table 4 presents a representative set of 20 portfolio weightings adopted over time along with the proportion of points they represent.

Comparison with Markowitz portfolio selection

This section reports on comparing the conservative portfolio value maximizing portfolio at stress level 0.75 and short position constraint of 2.5% with portfolios that are rebalanced along Markowitz lines. For a covariance matrix Σ and mean return vector μ, the Markowitz portfolio used is

However, as is well known, such portfolios can be quite unbalanced with large long and short positions that may even be totally unreasonable and impossible to hold or implement. To make them reasonable they were scaled to a volatility target of 20% with the rest of the funds held as cash. The covariance matrix was estimated from data on 252 immediately prior returns. For the mean returns we used first, the sample average over the past 252 days and second the exponential variation as estimated from the bilateral gamma process parameters.

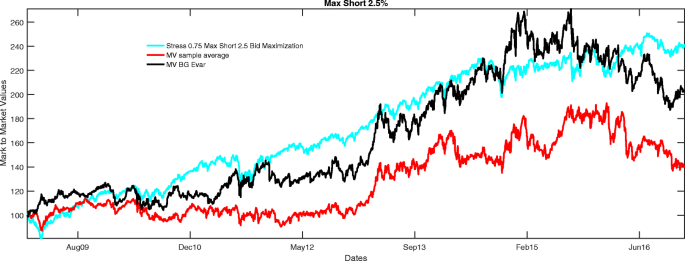

Presented in Fig. 10 are the time paths of accumulated portfolio values starting with a 100 dollar investment, rebalanced monthly or every 21 days, using the three rebalancing portfolio selections.

Shown are the time paths of portfolio values attained by conservative portfolio value maximization with zero covariation returns reflecting dependence of local bilateral gamma parameters of motion on all asset prices in the portfolio as estimated by support vector machine regressions. Also shown are the paths of mean variance optimization using for mean sample averages and exponential variations as estimated by bilateral gamma parameter estimates on a year’s worth of immediately prior daily returns

Full size image

We observe that the overall performance delivered by using sample averages for the mean returns is dominated by the use of mean returns extracted from distribution fitting. The conservative portfolio value maximizing portfolio delivers a smoother outcome with, an already observed, more stable set of portfolio weightings.

Performance statistics on randomly selected portfolios

To evaluate the consistency of improvements offered by conservative portfolio value maximization of zero covariation portfolio selection (ZCP) with Markowitz type portfolios using sample averages for means (MVA) and using the exponential variation of bilateral gamma processes for means (MVBGEV), we randomly selected ten stocks out of 214 a hundred times. For each selection we implemented the three monthly rebalancing strategies over the data period from January 3, 2008, through February 2, 2017. This is a period of 2298 days that includes the financial crisis. Table 5 presents the percentiles of performance measures on the three strategies over the entire sample. We observe significant improvements in the total return, Sharpe ratios, gain-loss ratios, and Acceptability Indices (Cherny and Madan (2009)). The max drawdowns and kurtosis are smaller while the skewness is increased.

Price processes are modeled to have continuously compounded returns given by locally bilateral gamma processes with zero covariations between them. It is observed that covariances can arise at specific horizons only if integrated variations are stochastic. This observation suggests that perhaps variations are Markovian and functionally dependent on the price processes themselves. Anticipating the absence of such dependence except when price relativities are strained leads to the conjecture that the dependencies must be nonlinear. For stylized models with a known nonlinear dependence, it is verified that support vector machine regressions are capable of detecting the prevailing nonlinearity. For variations to depend on prices, the parameters of the underlying bilateral gamma process should depend on prices. Support vector machine regressions are then employed to model parameter variations as depending nonlinearly on prices.

Given the complexity of support vector machine regression outputs, we seek statistics that capture the level of improvement delivered by such models. Model residuals are seen as liabilities to be paid out that have a conservative value when seen as an asset. This leads to employing the difference between the upper valuation for the residual less the lower valuation as a measure of the economic cost of holding the residual. Percentage reductions in economic costs of residuals then provide an assessment of model quality.

Once parameter dependence on prices has been synthesized using support vector machine regressions, path spaces may be simulated to form multi asset return outcomes at an investment horizon. These are then used to form optimal portfolios that maximize a conservative or lower valuation maximizing portfolio value. Such an objective is an application of conic portfolio theory as set out in Madan (2016). Results are presented for monthly rebalanced portfolios over a period of nine years. The implementation of monthly rebalancing over nine years on a hundred randomly selected sets of ten equity underliers shows considerable improvements in various portfolio performance measures using lower price maximizing zero covariation portfolios over Markowitz portfolio selections with volatility targets.
